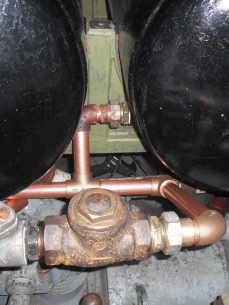

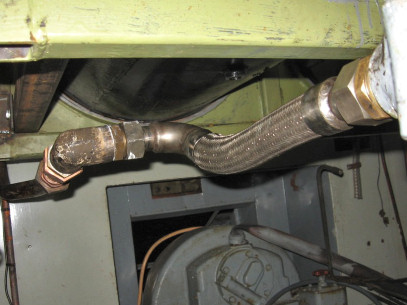

Front pipework run from the check valve showing 'T' into the first tank before soldering (above left), pipework and flexible from compresser to aftercooler (above right) 12-13/06/2011

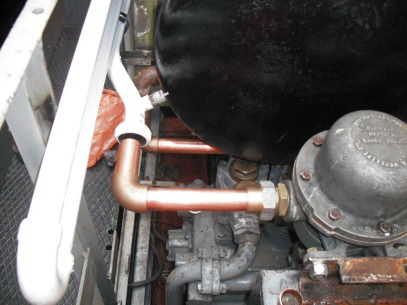

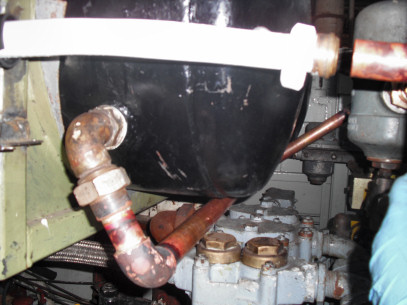

Run from aftercooler to large condenser, showing missing fitting (above left), Rear pipework run from both air tanks, 'T' for saftey valve and run down to small condenser (above right) 13/06/2011

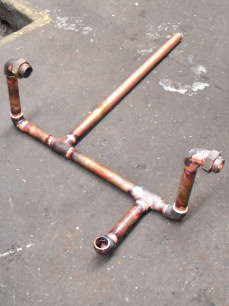

... Front pipework run from check valve to both air tanks (above left) and the same run installed onto the loco (above right) 14/06/2011 - All photos © D9531.com
